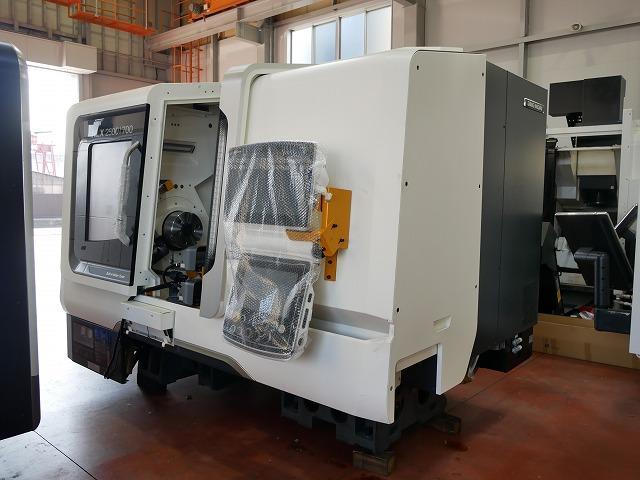

DMG MORI

NLX2500/700

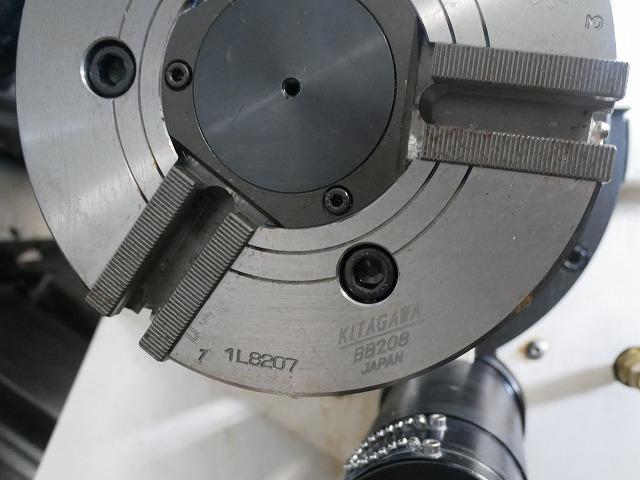

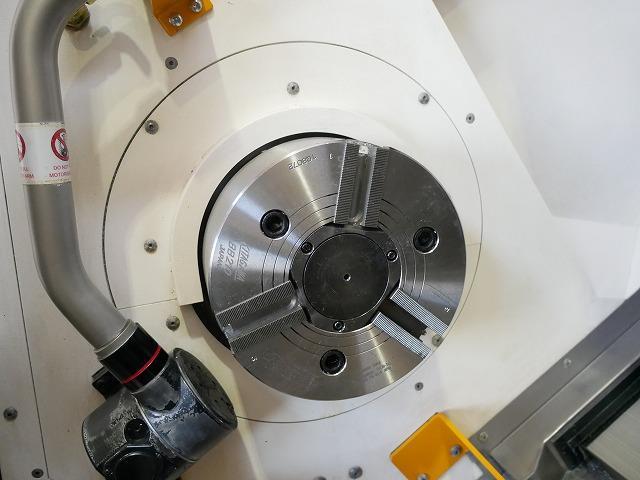

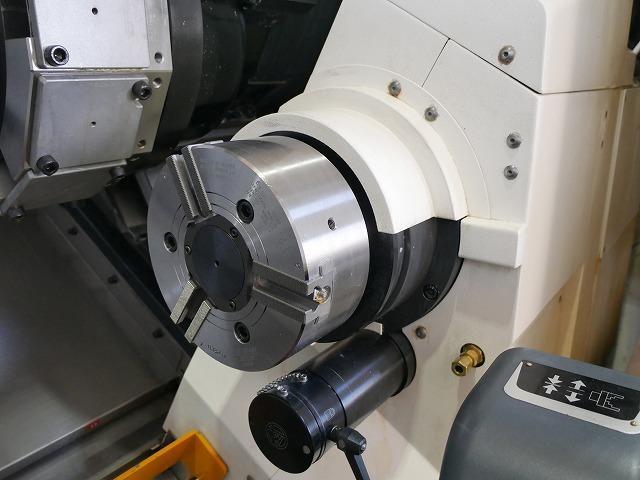

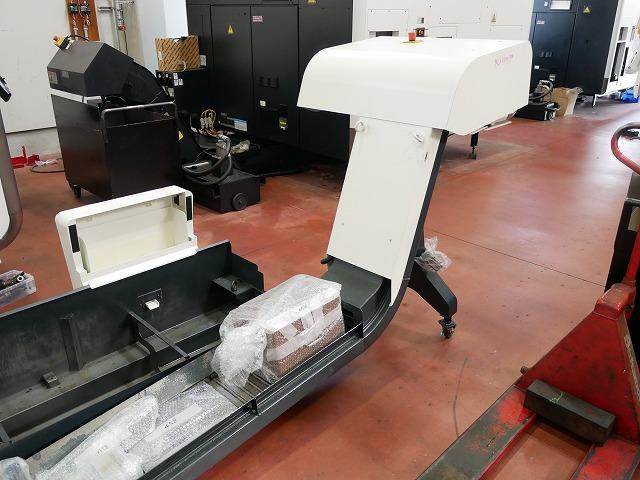

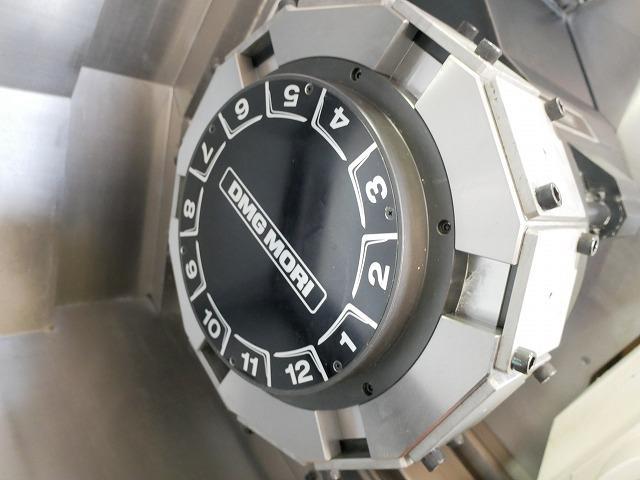

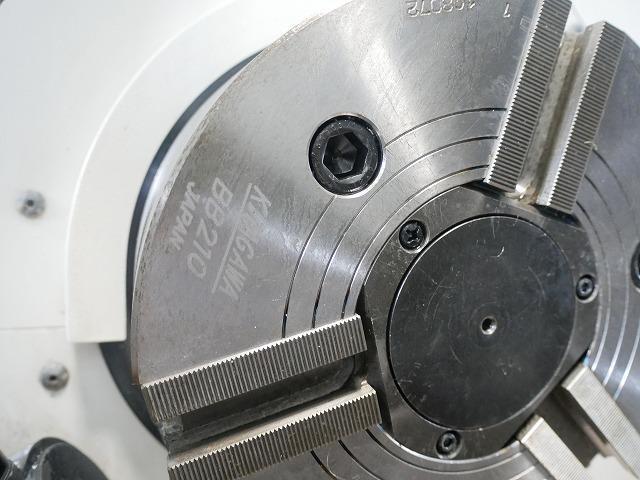

◆Control device: Mitsubishi M730UM (CELOS-EGROline Touch) ◆Swing above bed: 920mm (Interference with front cover: 589) ◆Swing above cross slide: 742mm ◆Maximum machining diameter: 356mm (12-sided tool post) When the protruding amount of the outer diameter bit is 40mm ◆Maximum machining length: 705mm ◆Travel amount XYZB: 260＊±50＊795＊734 ◆1st spindle rotation speed: 4000min⁻1 Kitagawa 10-inch hollow chuck ◆(Left spindle) Hollow cylinder set ◆2nd spindle rotation speed: 5000min⁻1 Kitagawa 8-inch hollow chuck ◆Right spindle through hole diameter: φ73mm ◆(Right spindle) Hollow cylinder set ◆Number of tool post tools: 12 (Bolt fastening) ◆ Tool post Y-axis specifications ◆ Rotary tool spindle speed: 10,000 min⁻1 ◆ External rotary tool protrusion: 100 mm (Y-axis movement limit) ◆ Right spindle center support ◆ Chip conveyor (right-hand, hinge type), oil skimmer (belt type) ◆ With chip bucket (254 L, height 800 mm) ◆ Automatic in-machine tool presetter (swing type) ◆ Manual in-machine tool presetter (detachable type) (right spindle) ◆ 4-stage signal lamp (red, yellow, green, blue) ◆ Standard work unloader (mounted in-machine) ◆ Right spindle work ejection device (cylinder type) ◆ EtherNet/IP I/F [Technology cycle] ◆Eccentric machining ◆Gear hobbing ◆Alternating speed ◆Multi-threading ◆Gear skiving [Control device options] ◆Variable speed thread cutting ◆DXF import function ◆MORI-POST advanced mode ◆Island leaving, open pocket ◆Area definition function ◆Text processing function ◆High-speed fixed cycle ◆Program restart ◆Tool evacuation, return ◆X-axis direction JIS/ISO compliant ◆E61675 SMARTkey (MODE4) ◆Screen display language Japanese ✤If there is a difference between the specifications and the actual product, the actual product will take precedence. ✤ If there is a difference between the specifications and the actual product, the actual product will take precedence.
