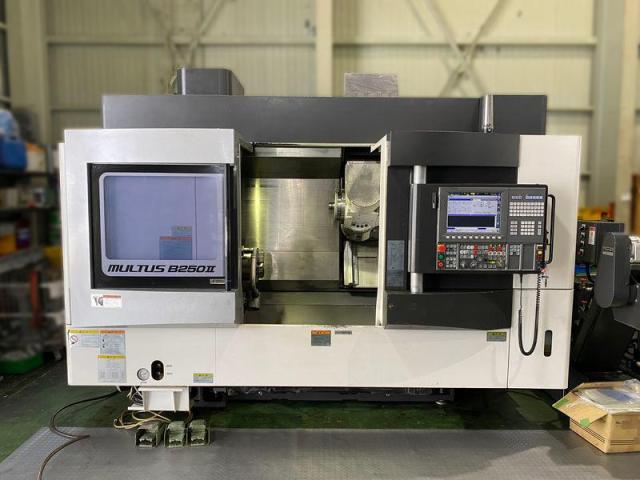

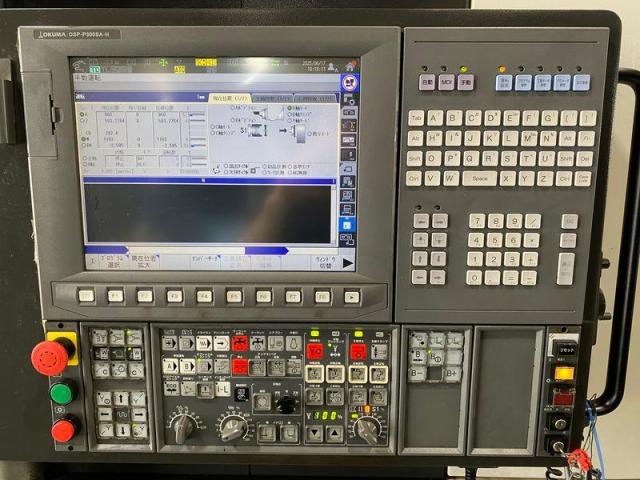

SPECIFICATION | Controller : OSP-P300SA-H
Swing on carriage : φ600 mm
Center distance : 750 mm
Maximum machining diameter : φ600 mm
Maximum workpiece weight (including chuck weight)
Cantilever support : 110 kg/ Double center support : 500 kg
Travel X : 500 Y : 200 Z : 800 mm
B : 225°(0.001°increments)
C : 360°(0.001°increments)
Spindle speed : 4,200 rpm
Spindle tip : JIS A2-6

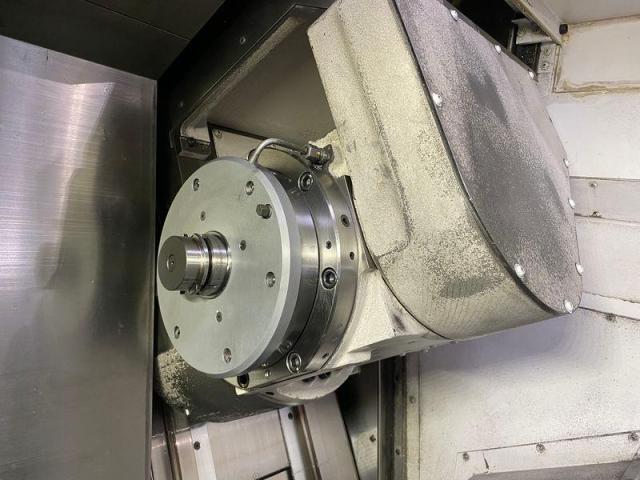

Tool rest type : H1 (1 for L (turning) and M (rotating tool))
Rotating tool speed : 50 ～ 12,000 rpm

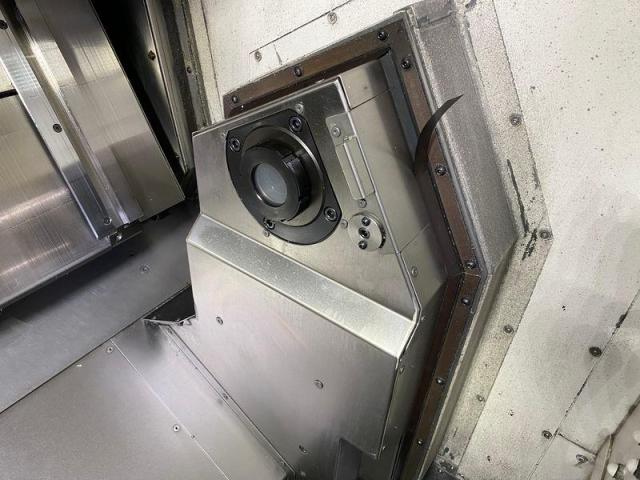

Tapered hole of tailstock : MT.No5 dead
Travel of tailstock : 810 mm
Tooling : HSK-A63

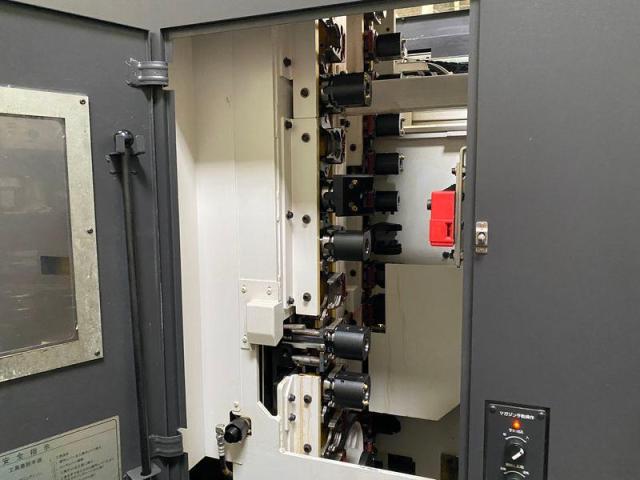

Magazine tool storage capacity : 40 stations
Required floor space : 3,190 x 2,210 mm
Height : 2,582 mm
Net weight : 7,900 kg

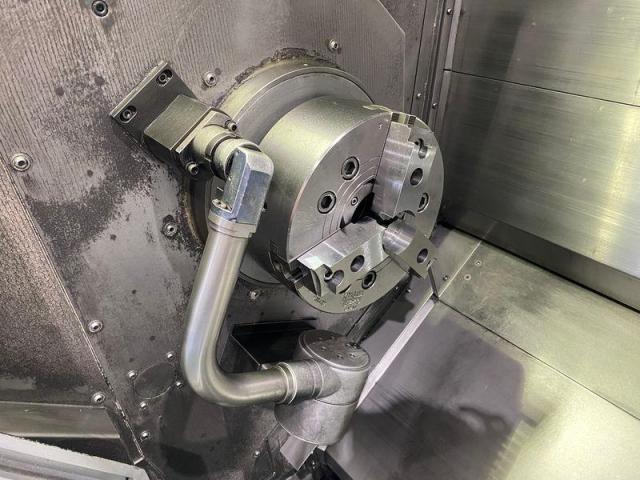

Chuck B-210 (Kitagawa hollow chuck)
Touch center (for tools)
Touch sensor (for workpiece) Renishaw RMP60
Easy dialogue advice
Periodic tapping
DNC-TI
Helical cutting
Tilted machining mode
Chip conveyor (front right output) |
|---|
