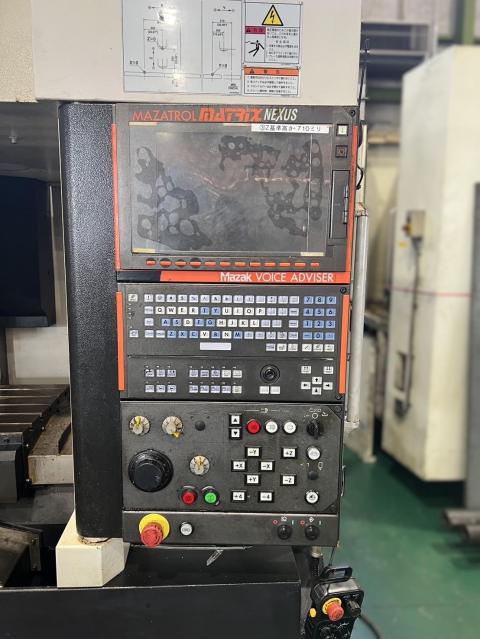

SPECIFICATION | Controller : MAZATROL MATRIX NEXUS

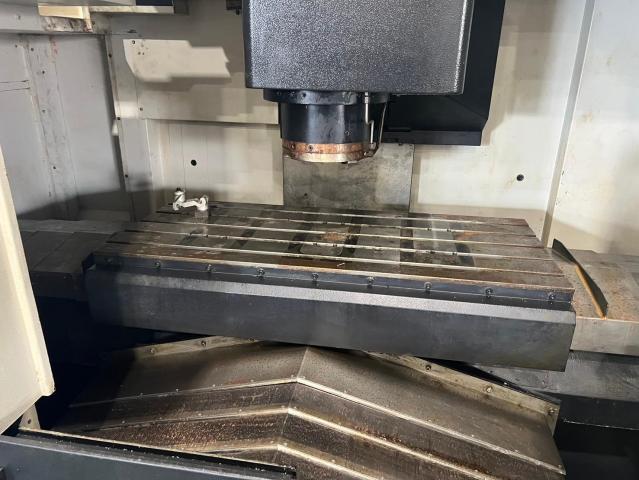

Table size : 1,300×550 mm
Max. work load: 1,200 kg
Travel X : 1,050 Y : 510 Z : 560 mm
Distance from spindle end to table top : 150～710 mm
Max. spindle speed : 8,000 rpm
Tool shank : BT50

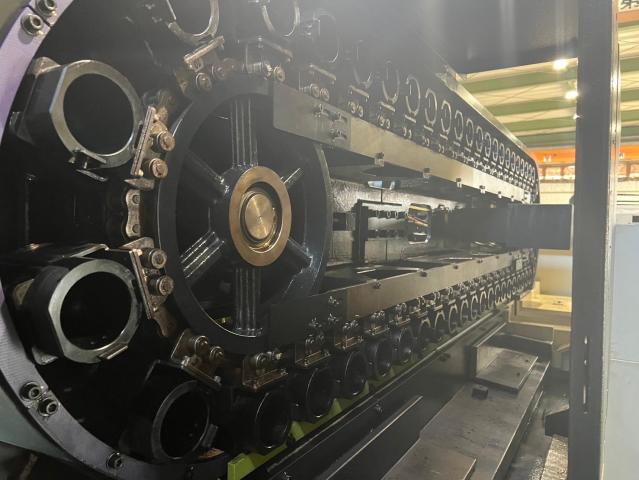

Tool storage capacity : 48 tools
Required floor space : 2,924 x 3,400 mm
Machine height : 2,835 mm
Machine weight : 7,830 kg
Mazak monitoring system B (MP3)
Scale feedback (X, Y, Z axes)
Work air blast
Flood coolant 4. 5kg/cm 30L/min
High-speed synchronous tapping
MAZACC - 3D high-speed, high-precision software P Rotational shape correction
High-speed smooth interpolation Cylindrical interpolation |
|---|
