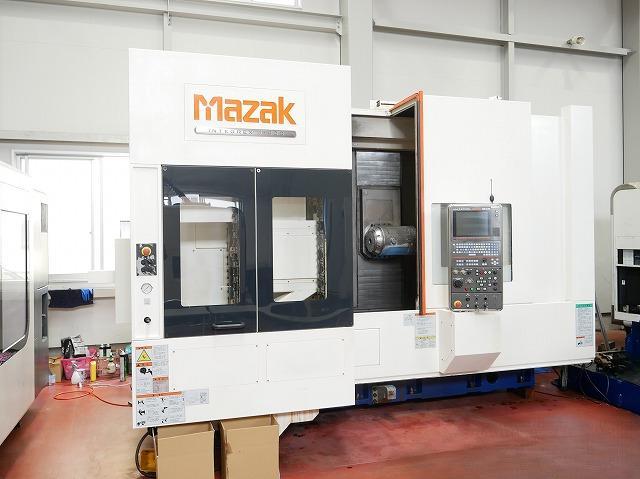

YAMAZAKI MAZAK

Integrex-J400

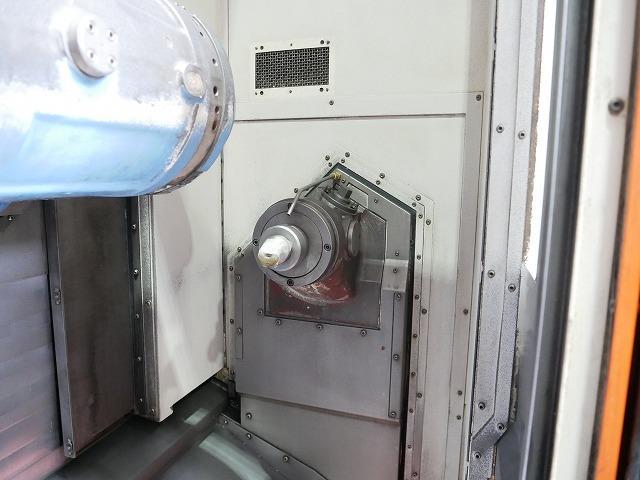

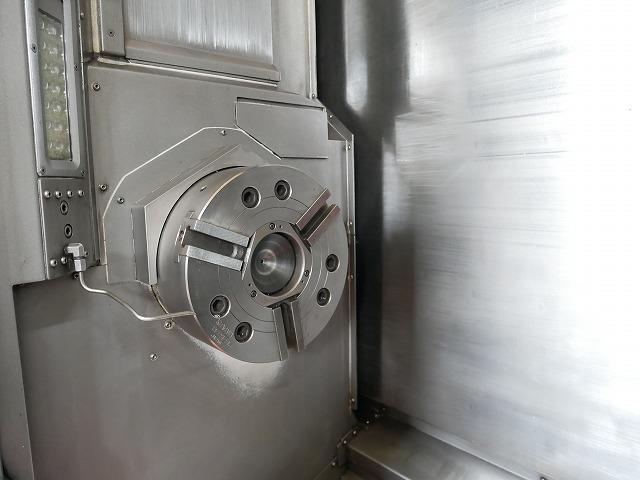

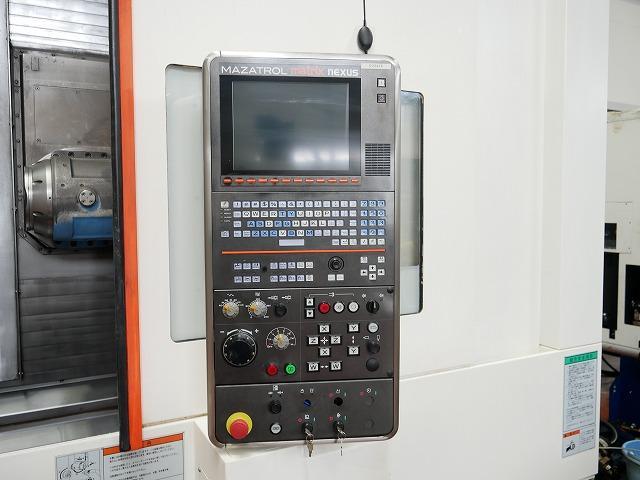

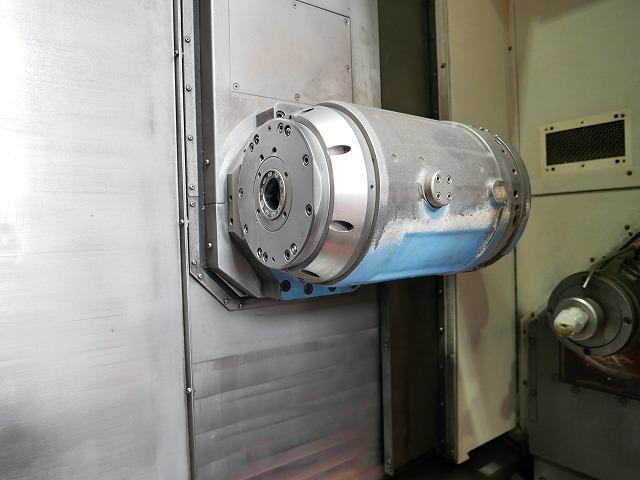

◆Control device: MX-NEXUS 12.1”LCD ◆Maximum swing: Φ680mm ◆Swing on the carriage: Φ680mm ◆Maximum processing diameter: Φ500mm (tool protrusion 65mm/V posture) ◆Rotation speed 35-3300min-1 ◆Spindle through hole diameter: Φ113 ◆Spindle motor: Built-in type variable speed AC inverter motor ◆C-axis minimum command unit: 0.0001°/pulse ◆C-axis rapid traverse rotation speed: 555min-1 ◆90° indexing time: 0.5sec ◆Rotary tool rotation speed: 35 to 12000min-1 ◆Tapered hole type of tailstock: MT No.5 ◆Tailstock travel amount: 1026mm ◆Thrust: 1.0-10.0kN ◆Number of tools stored: 72 (optional) ◆Maximum diameter for tool storage: Φ90 (No adjacent tools): Φ125 ◆Turret type: 1 spindle turret with ATC ◆Tool shank model: CAPTO C6 ◆Maximum tool length: 400mm ◆Maximum tool mass: 10kg ◆Fast forwarding speed: X50＊Y40＊Z50＊W8＊C555 ◆Travel amount: X615＊Y250＊Z695＊W1026＊B-30~190 ◆Height at center: 1235mm ◆Machine dimensions: W4240＊D2705＊H2720 ◆Machine mass: 12000kg [Special accessories] ◆Front door automatic opening/closing [Custom accessories/special specifications] ◆Compatible with coolant capacity of 400L or more ◆Made by Kitagawa Iron Works, hollow 12 inches (compatible with Φ102mm) ◆3-tier signal tower raised (300mm) ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

W4.24＊D2.705＊H2.72

12T
