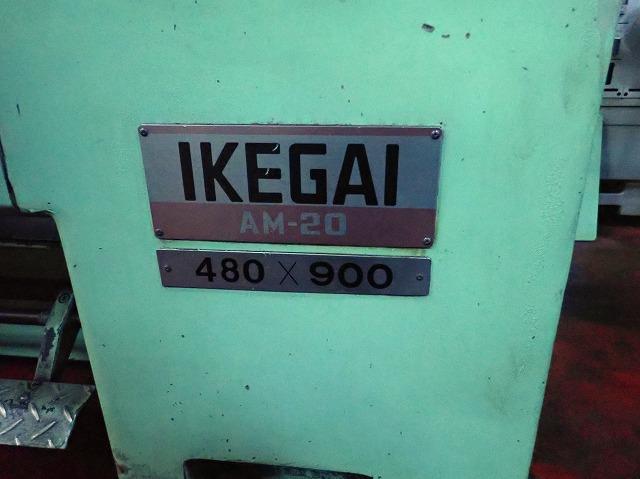

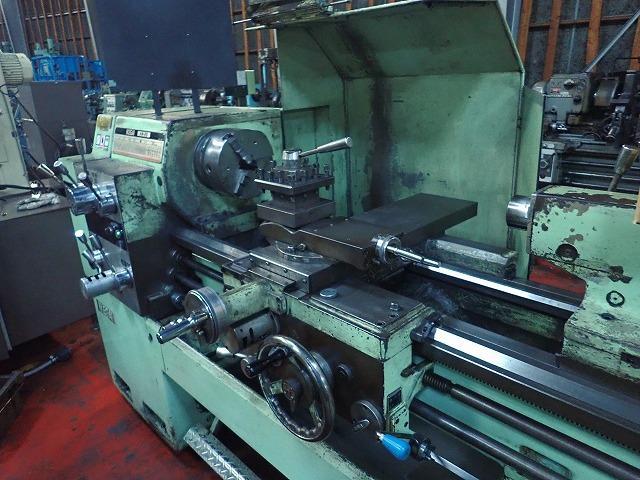

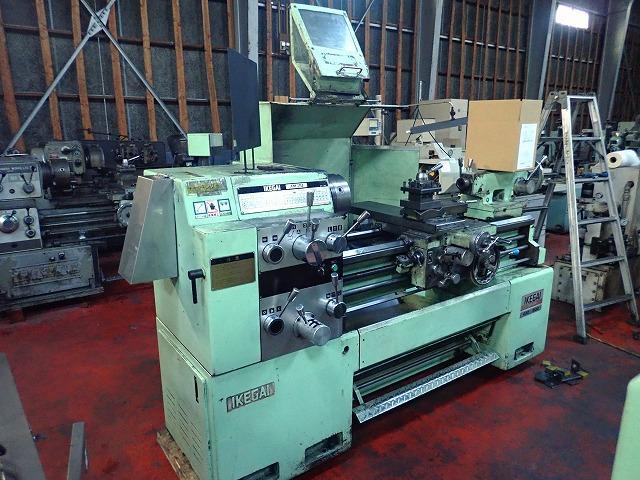

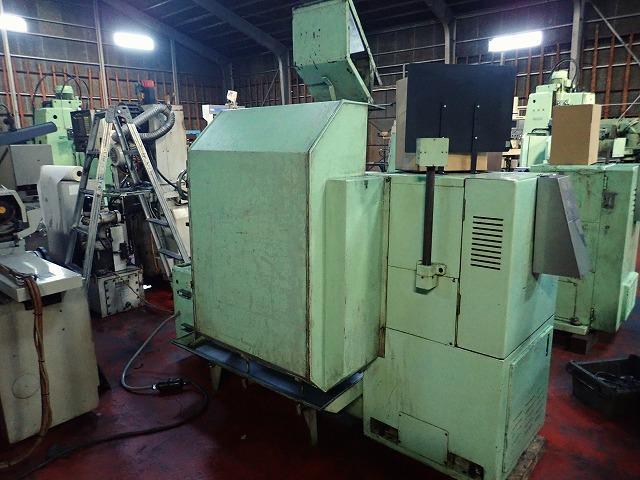

IKEGAI

AM-20

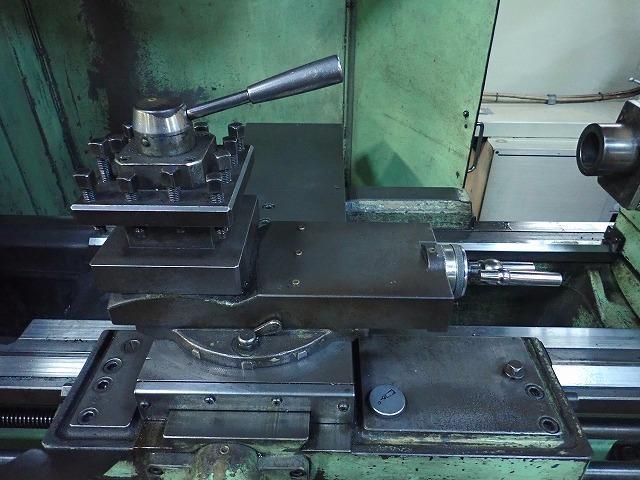

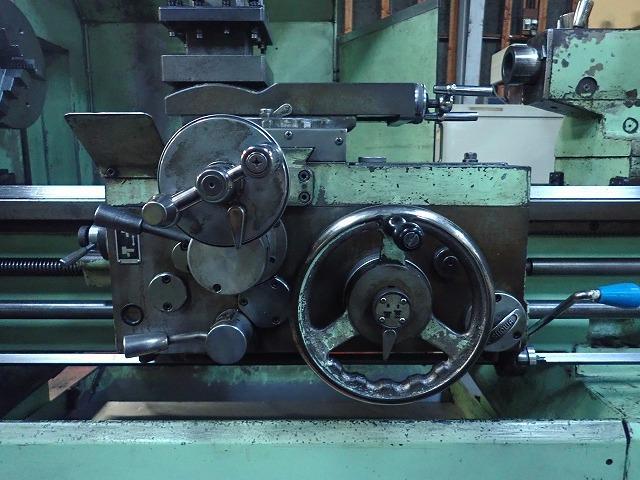

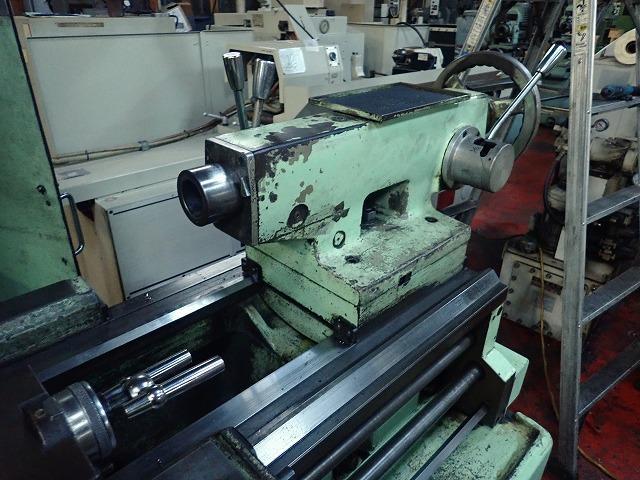

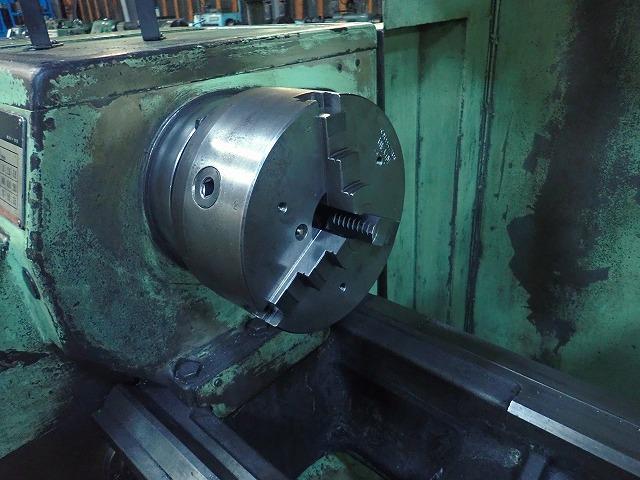

◆Swing on the bed: 480mm ◆Swing on the bed (200mm from area): 520mm ◆Swing on the carriage: 250mm ◆Maximum distance between both centers (stopping center): 900mm ◆Maximum distance between both centers (around center): 850mm ◆Continuous cutting length: 800mm ◆Cutting possible length (stop center): 900mm ◆Cutting possible length (around center): 850mm ◆Total length of bed: 1980mm ◆Bed top width: 405mm ◆Spindle end shape: ASA A1 No.6 ◆Spindle taper hole size: MT No.6 ◆Spindle center size: MT NO.5 ◆Spindle hole diameter: 56mm ◆ Number of spindle speed conversions and range: 15 types 9 to 1155 rpm ◆ Number of feed speed conversions and range: Vertical feed 24 types 0.05 to 0.7 mm/rev ◆Number of feed speed conversions and range: Horizontal feed 24 types 0.05 to 0.7 mm/rev ◆Transverse feed table movement amount: 270mm ◆Cutter feeder travel distance: 150mm ◆Dimensions of cutlery: 25 x 25mm ◆Main motor output: AC 4P 5.5kW ◆Height from the floor: 1080mm ◆Required floor area: 1100 x 2800mm ◆Net weight: 2150kg ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

2.15T
