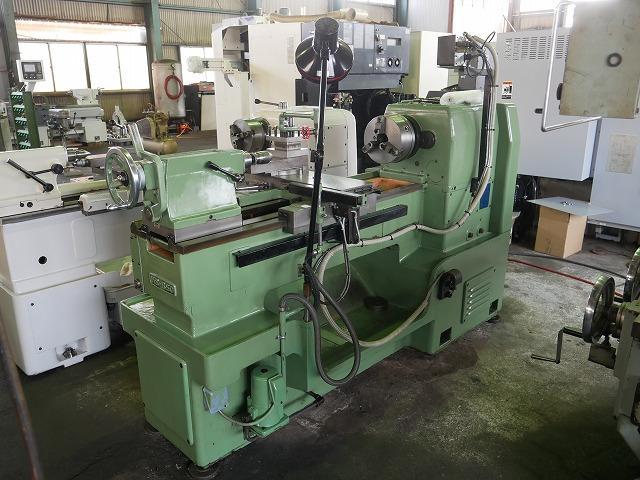

0.8m Lathe

Access: 37

Print PhotosPrint FAX PAPER

STOCK CODE

20206041
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

16910

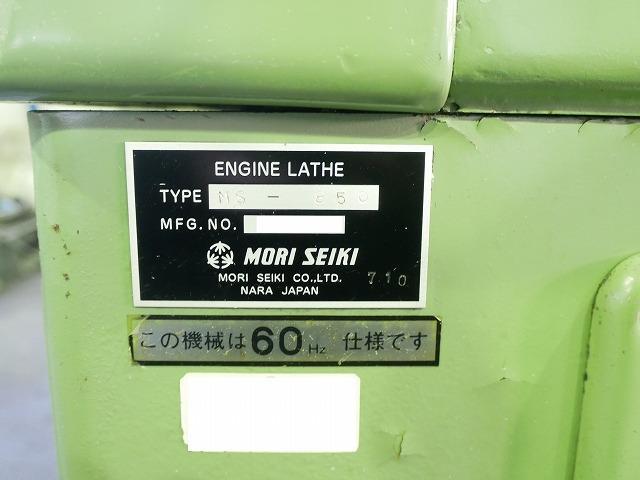

MANUFACTURER

MORI SEIKI

MODEL

MS-850

YEAR

PRICE

SPECIFICATION

◆Swing on the bed: 435mm ◆ Swing between 180mm from face plate: 490mm ◆Swing on the horizontal feed table: 250mm ◆Distance from floor to spindle center: 1075mm ◆Distance from bed to spindle center: 215mm ◆Maximum distance between both cores: 850mm ◆Spindle nose: JIS A-6 ◆Spindle through hole: 52mm ◆Sleep taper: MT6 ◆Center taper: MT4 ◆ Number of spindle speed conversions: 12 ◆Spindle rotation speed: 32 to 1800min ◆Lead screw: Φ31.75 Tee type screw 4 threads/inch or 6mm ◆Inch screw: 80~4 threads/inch ◆Metric screw: 0.25~7mm ◆D.P. screw: 112~8 ◆Module screw: 0.5-3.5 ◆Transverse feed table movement distance: 255mm ◆Double turret movement distance: 150mm ◆Maximum blade angle (X×Y): 25×25mm ◆Tailstock shaft movement distance: 150mm ◆Center taper: MT4 ◆Bed top width: 352mm ◆Bed total length: 1880mm ◆Spindle electric motor: 3.7㎾ (5㏋) 4P ◆Coolant pump electric motor: 100W 2P ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

WEIGHT

1.8T

LINK URL

https://k-smk.co.jp/en/machines/20206041/

LOCATION

Mie

LOCATION DETAIL

SELLER COMPANY

Shinmeiwa Kiko Co.,Ltd

SELLER PROFILE

Shinmeiwa Kiko Co.,Ltd

See Product Inventory of this company＞

ADDRESS

3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011

CEO NAME

CONTACT PERSON

Mr.Hashimoto / Ms.Fujio / Ms.Tsuji / Ms.Matsuzaki（Chinese）

TEL1

81-59-361-5505

TEL2

CELLPHONE

FAX

81-59-364-8737

BUSINESS HOURS

HOLIDAY

COMPANY DESCRIPTION

New & Used Machine tool,Press, Tools

INQIRY FORMContact By EmailMACHINE SPECIALTY

Machine Tools,Measuring / Testing,Presses,Sheet Metal

SITE URL

http://www.k-smk.co.jp/

COMPANY TYPE

Used Machine Dealer
