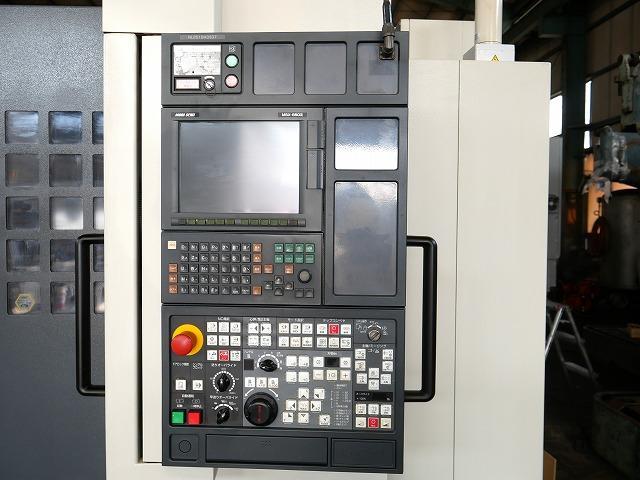

SPECIFICATION | ◆Power supply: MSX-850Ⅲ
◆Swing on bed: 923.8
◆Swing on cross slide: 755
◆Maximum processing diameter: 366
◆Standard processing diameter: 271
◆Standard processing length: 1298
◆Bar material working capacity: 80
◆Movement amount XYZ: 260×-50, 50×13445
◆Spindle rotation speed: 4000
◆Number of spindle speed ranges: 2 stages

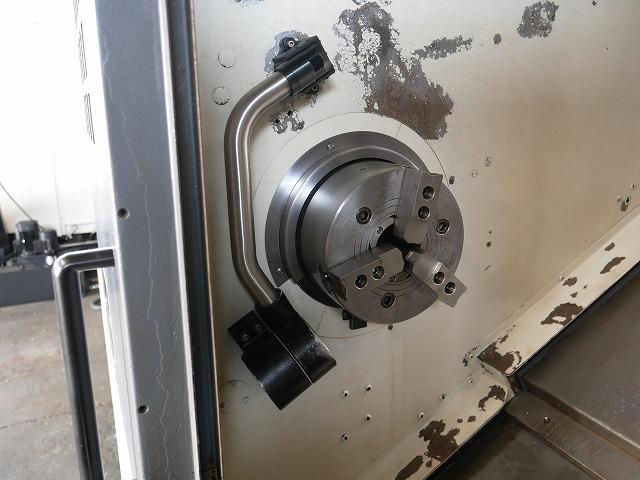

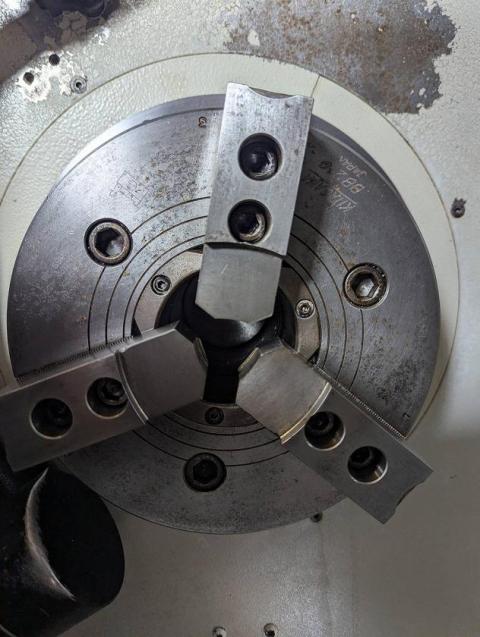

◆Spindle end: JIS A₂-8
◆Spindle penetration diameter: 91
◆Minimum indexing angle of spindle: 0.001
◆Spindle bearing inner diameter: 140

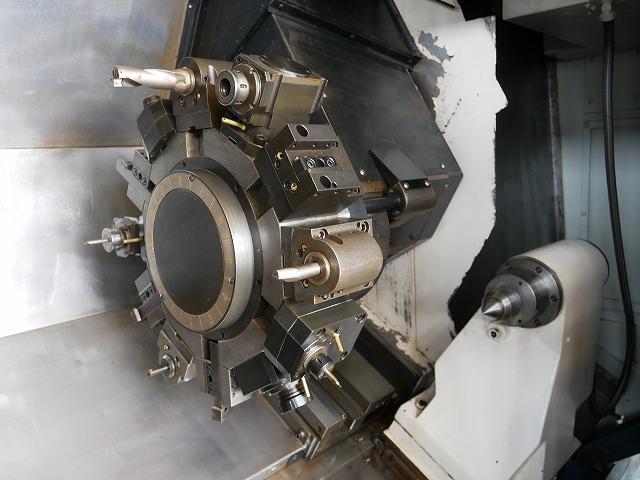

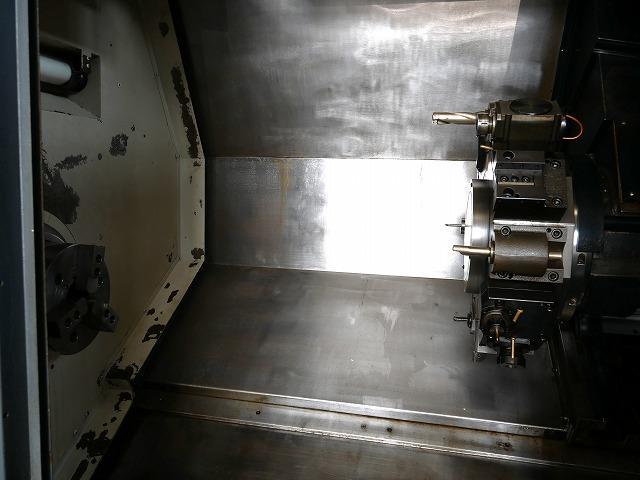

◆Turret format: 12-sided
◆Number of tools installed on the turret: 12
◆Shank height of square tool: 25
◆Boring bar shank diameter: 50
◆Rotary tool spindle rotation speed: 6000min-1

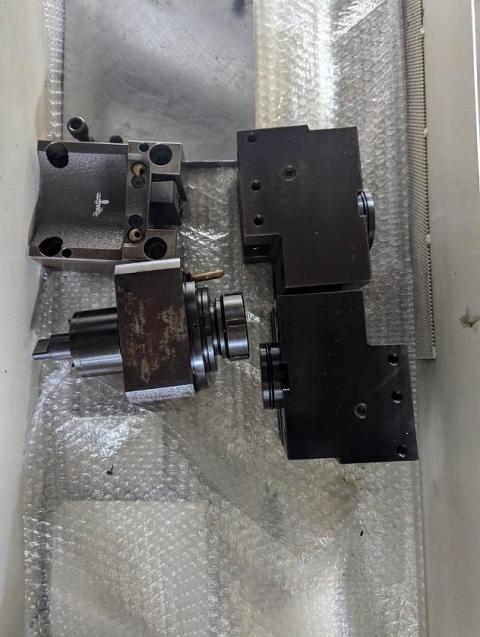

◆Rotary tool processing ability Drill: Φ26, Tap: Max20
◆Fast forwarding speed XYZ: 30000×10000×30000
◆Rapid feed speed Tailstock: 7000
◆Jog feed speed XYZ Tailstock: 0 to 5000
◆Tailstock travel amount: 1284
◆Tailstock diameter: 110
◆Tapered hole type of tailstock shaft: MT5
◆Machine dimensions: W4339 (chip conveyor 700) x D2143 x H2232
◆Machine weight: 7500kg
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product. |
|---|
