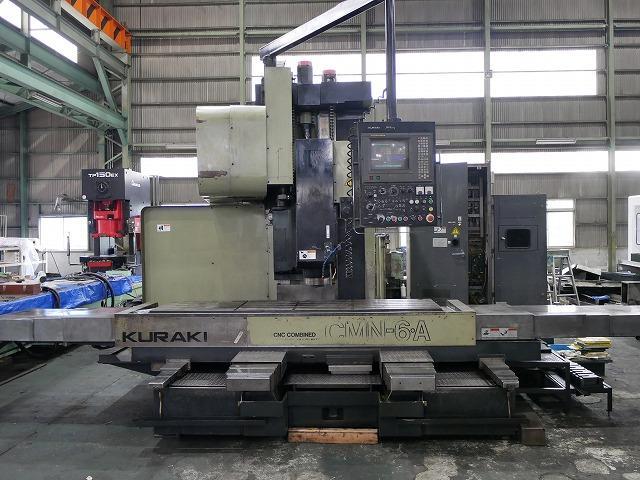

CNC Composite Milling Machine

Access: 6

Print FAX PAPER

STOCK CODE

20301149
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

16855

MANUFACTURER

KURAKI

MODEL

CMN-6A

YEAR

1995

PRICE

SPECIFICATION

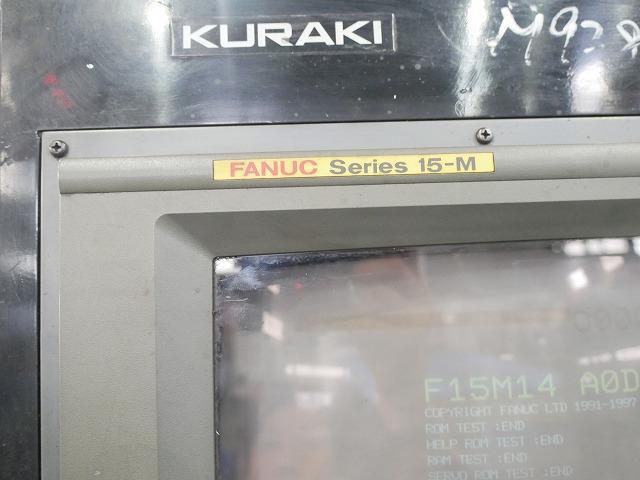

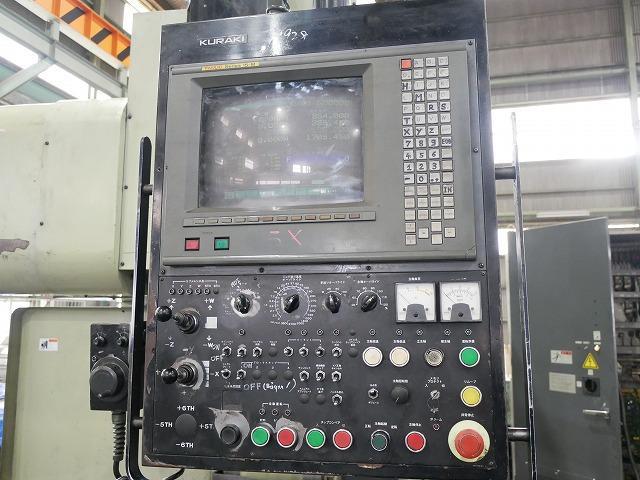

◆Control device: FANUC Series 15-M ◆Movement amount XYZW: 2000×760×850×1030 ◆Distance from table top to vertical spindle end: 150 to 1000 ◆Distance from the front of the column to the center line of the vertical spindle: 700 ◆Distance from table top to horizontal spindle center line: 20 to 1050 ◆Table work surface size: 2500 x 655 ◆Maximum loading mass of table: 3000 ◆Table top shape: 22mm T-groove 5 pieces ◆T-slot spacing: 125 ◆Spindle rotation speed: 20 to 4000min-1 ◆Spindle taper hole: 7/24 taper NO.50 ◆Spindle bearing inner diameter: 100 ◆Rapid feed speed XY: 10000mm/min ◆Rapid feed speed ZW: 10000mm/min ◆Cutting feed rate XYZW: 1 to 3600mm/min ◆Spindle motor: AC1kW/30 minutes Model 12 ◆Feed shaft electric motor XY: AC3.3kW ◆Feed shaft electric motor ZW: AC3.5kW ◆Hydraulic electric motor: 2.2kW ◆Hydraulic unit tank capacity: 40L ◆Machine dimensions: W6670×D4250×H3520 ◆Machine weight (including NC device): 21300kg ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

SIZE

W6.67×D4.25×H3.52

WEIGHT

21.3
