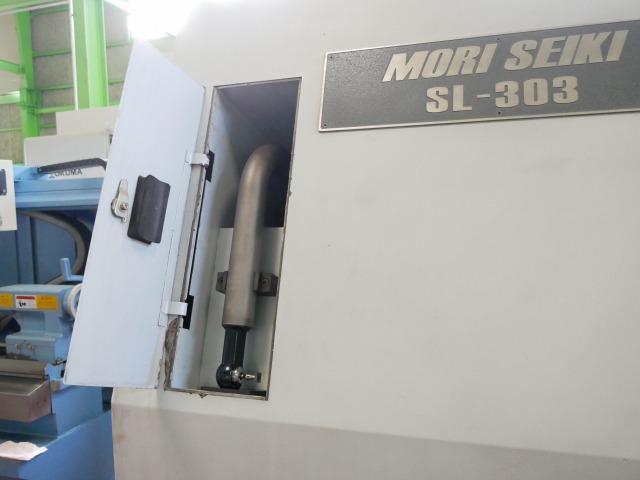

SPECIFICATION | ◆Swing over bed (mm): 715
◆Swing over cross slide (mm): 500
◆Maximum distance between centers (mm): 1637
◆Maximum machining diameter (mm): 420
◆Standard machining diameter (mm): 307
◆Maximum machining length (mm): 1560
◆X-axis travel (mm): 250
◆Z-axis travel (mm): 1650
◆Spindle rotation speed (min-1): 25-2,500
◆Number of spindle speed ranges (steps): 1 (winding)
◆Spindle end: JIS A2-8
◆Spindle through-hole diameter (mm): 105
◆Spindle bearing inner diameter (mm): 160
◆Tool post type: Decagonal
◆Number of tools mounted on the tool post: 10
◆Shank height of square cutting tool (mm): 25
◆Diameter of boring bar shank (mm): Maximum 50
◆Tailstock travel (mm): 1400
◆Tailstock diameter (mm): 130
◆Tailstock tapered hole type: MT5 (built-in center)
◆Tailstock travel (mm): 150
◆Rapid traverse speed (mm/min): X: 15,000 Z: 20,000
◆Jog feed speed (mm/min): X, Z : 0-1,260 (15 stages)
◆Spindle motor (30 min/continuous) (kW): 22/18.5 (30/22)
◆Feed axis motor (kW): X: 2.8, Z: 3.8
◆Hydraulic motor (kW): 1.5
◆Lubrication motor (kW): 0.02
◆Coolant motor (kW): 0.52 (0.325)

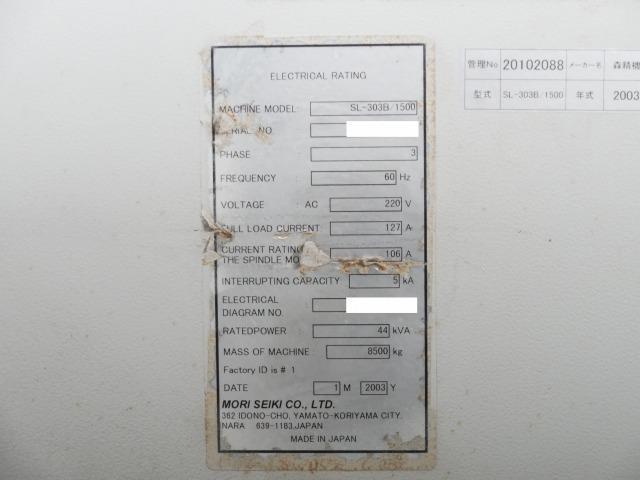

◆Power supply (continuous rating) (kVA): 46.2 (51.6)
◆Machine height (mm): 2,150
◆Required floor space (mm): 4,645 * 2,096
◆Machine weight (kg): 8,500
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
