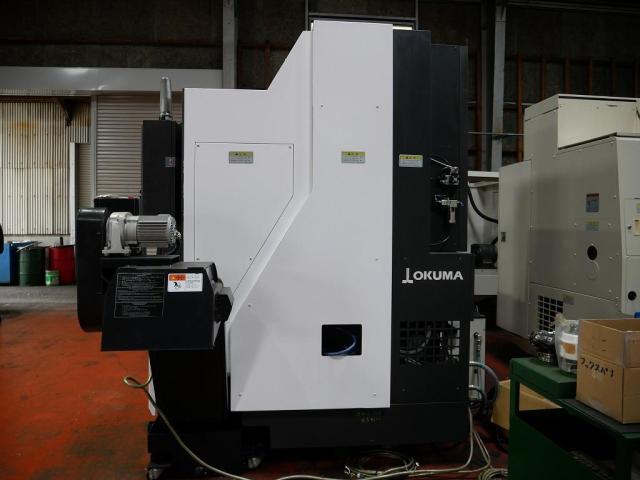

OKUMA

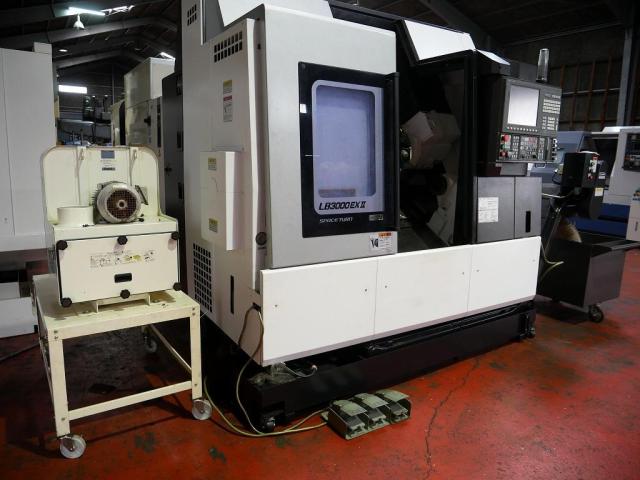

LB-3000EXⅡ

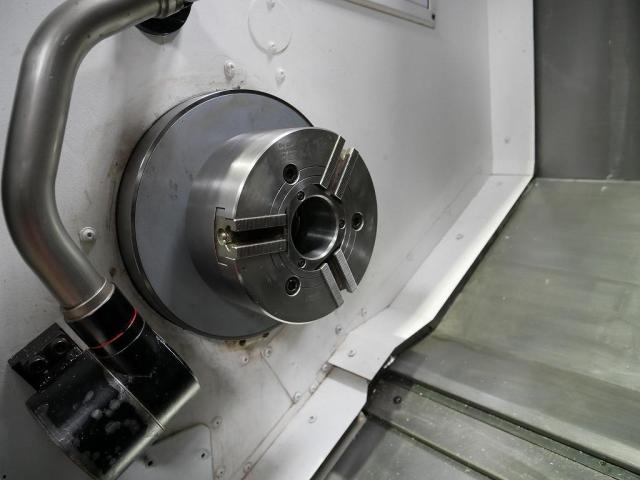

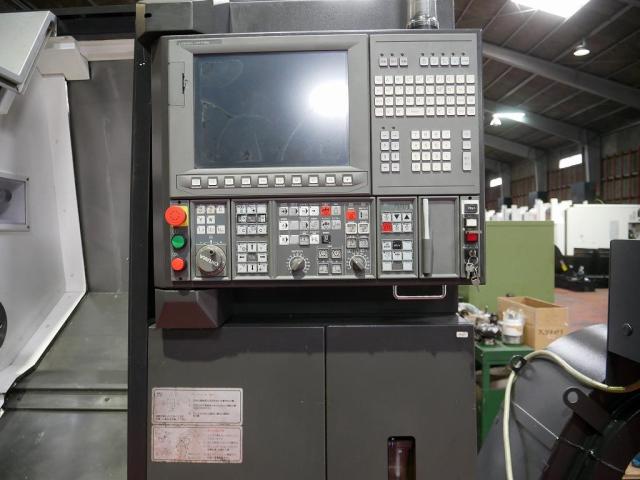

Main unit model: LB3000EXⅡ Specification development: MY C450 OSP:OSP-P300L Distance between centers: 470 Maximum processing diameter: Φ340 Maximum processing length: 450 X-axis: 260 Z-axis: 510 Y-axis: 120 (+70 to -50) C-axis: 360 (rotary axis control angle 0.001) Travel amount: 515 Spindle size: Standard spindle (A2-6) 45~5000min-1 Headstock motor (standard spindle): VAC22/15kw (30 minutes/continuous) Turret (compound machine): compound V12 radial Tailstock indicator taper type: Dead type MT No.5 Tailstock movement method: NC tailstock Rotary tool spindle (compound machine): 6000min-1 PREX7.1/4.1kw 40.4Nm M/MY machine chucking kit: BB kit Hollow chuck BB208A: including SS1770 ◆OSP kit OSP Easy Dialogue Advanced M-D Arc thread cutting function Programmable message function Coordinate transformation Creative processing Easy dialogue advanced L complex: including real 3D Cycle time over check Load monitor function (spindle feed axis) Tool life management function NC operation monitor (including NC counter) Status indicator light: 3-stage C type Operation time reduction function Hi-cut Pro Spindle rotation speed fluctuation control ◆OSP individual Program store capacity: 2GB or more guaranteed (standard) Operation buffer capacity: 2MB or more guaranteed (standard) Spindle fixed position stop Electric type Environmental thermal displacement control (TAS-C) Z-axis automatic origin offset Helical cutting function anti-crash system DNC-DT Automatic power cutoff function MO2/Alert Pitch error correction function Earth leakage cutoff function Processing navigation: L-g (including microphone and conversion plug) ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

W2.310＊D1.734＊H2.250

5
