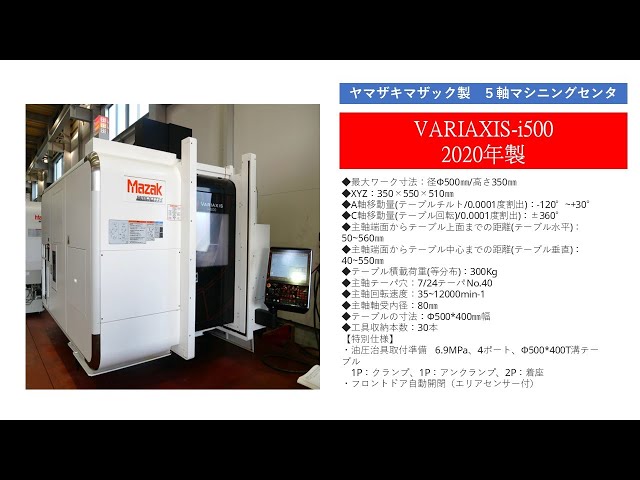

SPECIFICATION | S:X350*Y550*Z510
A: -120°~+30°
C: ±360°
T:Φ500*400
Table loading capacity: 300Kg
Maximum workpiece size: Φ500mm/H350mm
Main shaft taper hole: 7/24 taper No.40
Rpm: 12000
Main shaft bearing inner diameter: 80mm
ATC: 30 pieces
【special version】
・Preparation for installing hydraulic jig 6.9MPa, 4 ports, Φ500*400T groove table
1P: Clamp, 1P: Unclamp, 2P: Seating
・Front door automatic opening/closing (with area sensor)
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product. |
|---|
