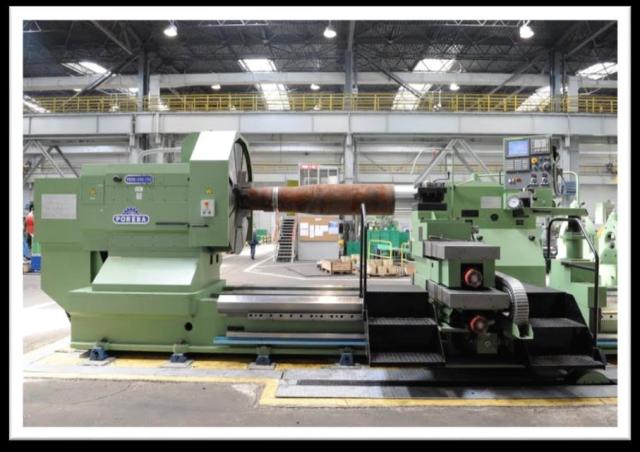

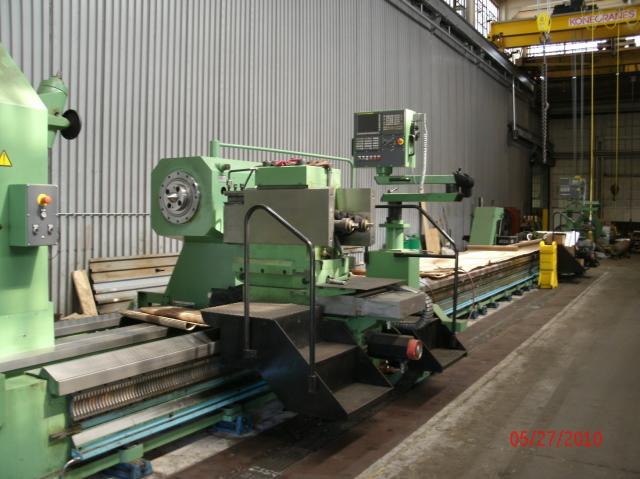

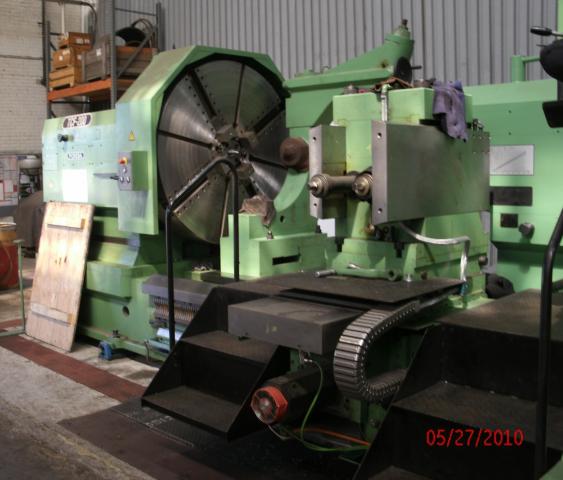

CNC Lathe
Access: 435
STOCK CODE | 7557 101 | |||
|---|---|---|---|---|
MACHINE ID | 1308 | |||
MANUFACTURER | POREBA | |||
MODEL | TCF 200CNC | |||
YEAR | NEW | |||
PRICE | ||||
SPECIFICATION | TCF-200 CNC 3-guideway bed width 1500mm Swing over bed:2000mm Turning dia.(swing over carriage):1600mm Dia.of 4-jaws chuck:1600mm Centre distance:9000mm Load carrying capacity with one steady:35000kg with two steadies:40000kg Load carrying capacity in the chuck:4000kg 3.2 Headstock Spindle taper size 1:10 Spindle bore:105mm Range of revolutions (infinitely variable adjustment) 0.5-250rpm Number of speed ranges number 3 Main motor power 81kW Maximal spindle torque Nm 40000 3.3 Carriage Version 3/2 ? carriage set up on the 2guideway passing the tailstock Length of the saddle 1320mm Rapid travel in Z axis 6000mm/min Rapid travel in X axis 4000mm/min Longitudinal travel turning length Transversal travel 700mm Diameter of X ball screw ��63x10mm Drive of Z axis double pinion ? spring preload zero backlash rack drive 3.4 Tailstock Quill diameter �� mm 280 Quill travel out mm 200 3.5 Overall diameters and other data of the lathe Length mm 3550+turning length Offer No. AR/047/M/08/16 dated 30.08.2016 POREBA Heavy duty CNC lathe type TCF-200 x 6m ____________________________________________________________________________________________ 4 4 STANDARD EXECUTION 4.1 swing diameter over bed - �� 2000; 4.2 swing over carriage �� 1600 4.3 three guideway bed 4.4 turning length 6 m; 4.5 4 -jaw chuck �� 1600; 4.6 carriage supported on two guideways passing the tailstock 4.7 main motor power - 71 kW (continuous operation); 4.8 spindle revolutions 0.5-250 rpm; 4.9 power supply 3x400/50 Hz; 4.10 Sinumerik 840D sl operate ? included Siemens RSC ;4.11 tooling system ? 4 position tool turret 05.320.040 4.12 Z axis travel provided from double pinion ? spring preload zero backlash rack drive; 4.13 travel of cross slide (X axis) provided by ball screw; 4.14 automatic change of spindle speed ranges; 4.15 central lubrication controlled by CNC; 4.16 chip conveyer; Width mm 3000 Height mm 2200 Net weight of the lathe for 3000 mm turning kg 33000 Additional net weight for each 1m length of the lathe kg 1600 3.6 Control system Sinumerik 840D sl operate | |||
ACCESSORIES | Grinding attachment 5.5 kw for 4- position automatic tool turret | |||
LINK URL | ||||
LOCATION | - | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Lansing Machinery | |||
