POREBA

TCG 125 x 5000

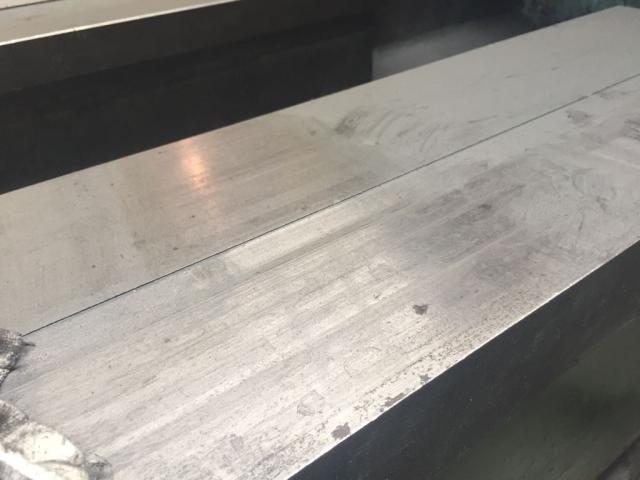

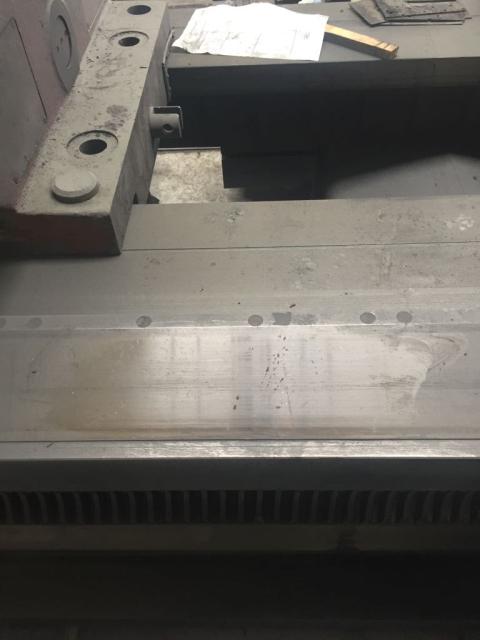

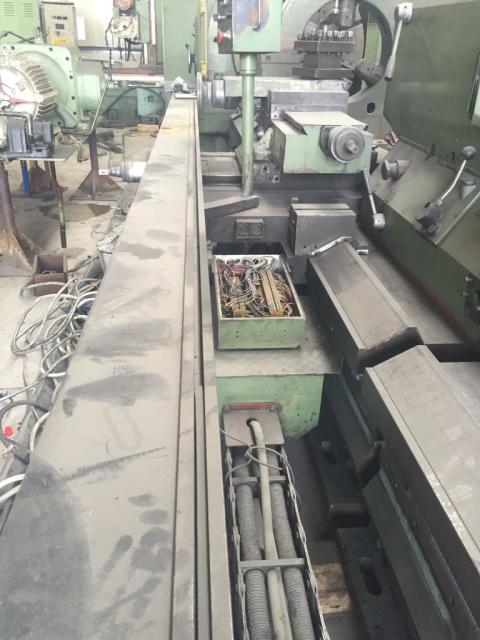

Conventional Heavy Duty Lathe POREBA Model: TCG 125 x 5000. Machine was designed by POREBA as a machine for special application for producing a barrel type roll for steel plant. That is the reason why it was equipped by producer with HEID ( Germany ) electrical template (electrical copying unit). That electrical template can be easily disassembled . HEAVY DUTY LATHE POREBA Model: TCG 125/5000 Manufacturer: POREBA New in: 1991 Condition: very good under power !!!! Location: our warehouse in Rudniki ? Poland Technical details: Capacities: Height of centres over the flat way: 625 mm Height of centres over the flat floor: 1225 mm Swing over bed: 1250 mm Swing over carriage: 940 mm Diameter of four-jaw chuck: 1250 mm Workholding range of the chuck min/max.: 230/1050 mm Distance between centres: 5000 mm Headstock: Spindle bore: 105 mm Spindle seat: cyl. 105 Diameter of the spindle in the front bearing: 320 mm Number of spindle speeds: 24 Overall range of spindle speeds: 1,6 - 315 rpm Spindle drive motor rating: kW 75 Maximum torque of the spindle: 63000 Nm Carriage: Width of the bed: 1100 mm Length of the saddle: 1320 mm Width of the cross slide: 550 mm Travel of cross slide: 800 mm Travel of tool slide: 600 mm Number of feed rates for each range: 20 Overall range of longitudinal feed rates: 0.18 - 160 mm/rev Range of longitudinal feed rates at: - high range of spindle speeds: 0.18 - 5 mm/rev - middle range of spindle speeds: 0.18 - 40 mm/rev - low range of spindle speeds: 0.72 - 160 mm/rev Overall range of metric threads: 1-192 mm Overall range of inch threads: 30 - 1/8 tpi Overall range of mm per min feed rates: 11.2 - 320 mm/min. Longitudinal rapid traverse: 4000 mm/min Rapid traverse motor rating: 4 kW Tailstock: Diameter of tailstock quill: 280 mm Diameter of tailstock spindle in front bearing: 170 mm Seat ( taper ) of tailstock centre: Cyl. 70 Travel of tailstock quill: 200 mm Rapid traverse of tailstock quill: 300 mm/min Rapid traverse of tailstock along the bed: 1500 mm/min Overall dimensions and weight: Length of the machine: 10700 mm Width of the lathe: 2200 mm Height of the lathe: 1930 mm Load carrying capacity in the chuck while the distance of gravity centre from the face of the chuck is equal to 350 mm: 4 t Load carrying capacity between centres - without steadies 30 t - with one steady 35 t - with two steadies 40 t Weight of the machine: 38 t This Machine is in working condition. Location: Rudniki in Poland. Delivery time: immediately
