TKV 525 made of Sedin 1525

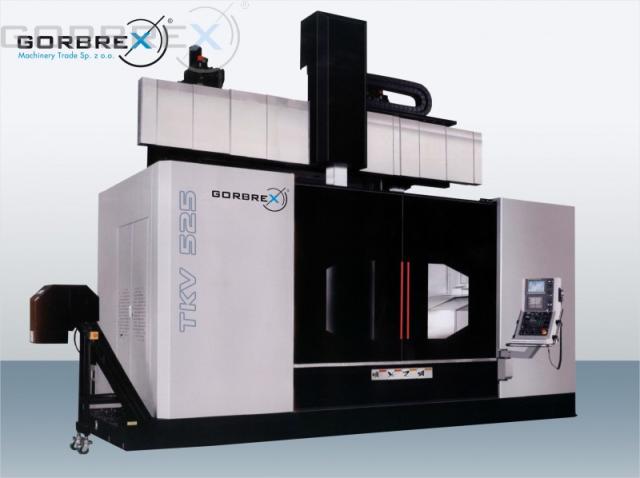

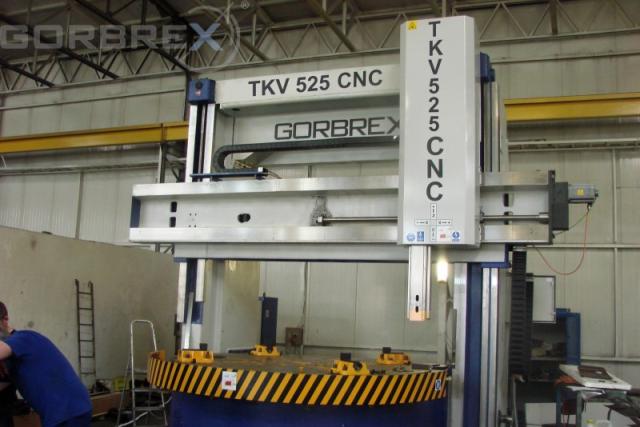

CNC Vertical Lathe GORBREX Model: TKV 525 / 2500 Offer ID: 32 Manufacturer: Model: TKV 525 CNC Control: SIEMENS SINUMERIK828 Localisation: our Workshop Rudniki - Poland Machine fully modernized modified of SEDIN 1525 with new electrical unit lubrication unit regrinder slideways painted replacement of all worn mechanical parts. Machine will be equipped with new CNC control SIEMENS SINUMERIK 828. Delivery time: max. 3 - 4 months Number of columns: 2 Number of carriages:1-opion 2 Type of carriage: Ram Number of axis controlled: X/Z -option X1/Z1,C Table diameter: 2250 mm Max turning diameter: 2500 mm Max. workpiece height: 1600 mm( with possibility of upgrading up to 2200 mm) Max. table load: 16 000 kg Table speeds range: 100 rpm Number of table speeds ranges stepless: 3 Vertical travel in Z axis ( ram travel): 1200 mm Horizontal carriage travel in X axis: 1400 mm Working feeds range: 2-2000 mm/min Rapid feeds: 10 m/min Installed power: 59 kW Positioning accuracy: 0,01/1000 mm Machine dimensions: 5200 x 6400 x 4900 mm Machine weight: 35 500 kg Transversal beam feeding: 360 mm/min Motors and overall dimensions: Main motor: 45 kW 1430 mph Transversal beam feeding motor: 5.2 kW 1500 rpm Transversal beam clamping motor: 2 kW 1500 rpm Carriages feeding motors ( 2 nos ) 3 kW 1500 rpm Lubrication unit motor: 1.7 kW 1500 rpm Dimensions: 5065 x 5280 x 4910 mm Machine weight: 35 500 kg

FCA or with the delivery FOB or CIF
