MANUFACTURE DATE (INSTALLED NEW) 12/2004 (2005)
MAXIMUM SWING OVER BED 21.7"
SWING OVER SADDLE 15.4"
MAXIMUM TURNING DIAMETER 11.8"
MAXIMUM TURNING LENGTH 20.2"
DISTANCE BETWEEN CENTERS 29.5" (w/CHUCK)
X AXIS TRAVEL 8.1"
Z AXIS TRAVEL 22.8"
C AXIS SPINDLE INDEXING 0.001 DEG.
SPINDLE BORE 3.1"
MAXIMUM BAR CAPACITY 2.51"
SPINDLE MOTOR 25 HP
SPINDLE NOSE A2-6
SPINDLE SPEEDS 45 - 4,500 RPM
RAPID TRAVERSE RATE Z AXIS / X AXIS 1200 IPM / 945 IPM
LIVE TOOL SPEED / MOTOR 5000 RPM / 7.4 HP

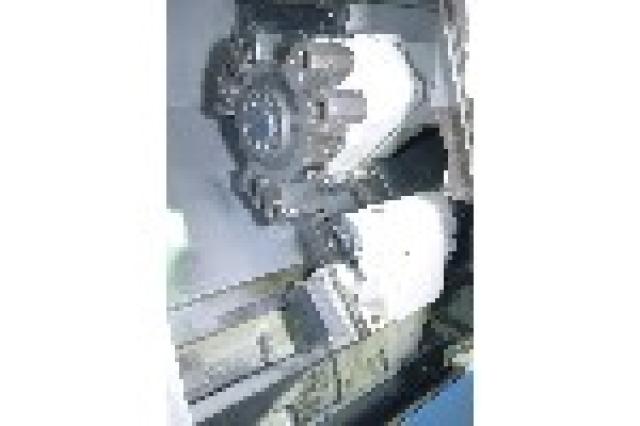

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK QUILL TAPER / DIA. MT #4 / 3"
DIMENSIONS
APPROX. 118"L x 69"W x 72"H
WEIGHT
APPROX. 10,000 LBS
