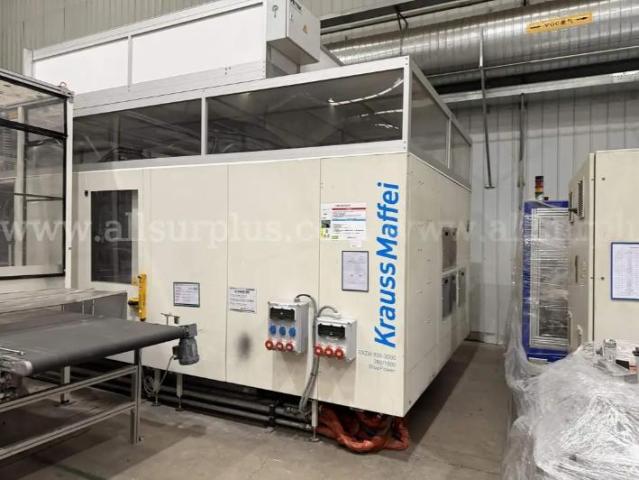

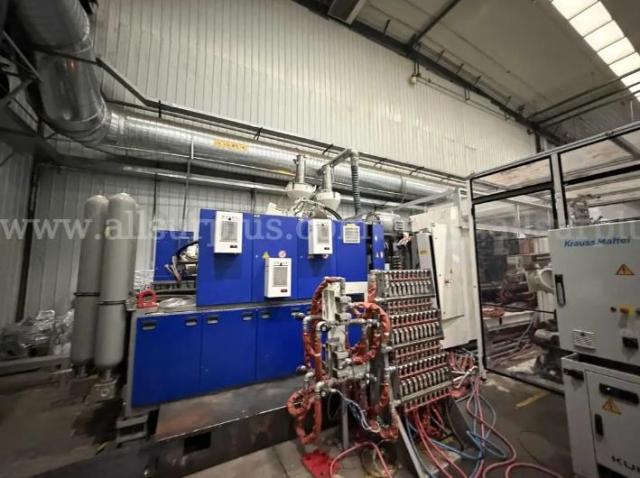

DESCRIPTION: | 900T Krauss Maffei 'KM 900-3000/380/1000 GXZW' Injection Molding Machine
Injection Molding Machine, Maker Krauss Maffei, Model KM 900-3000/380/1000 GXZW, S/N 65000975, YOM 2022;
• Clamping force: 9000 kN
• Platen dimensions: 1660 × 1530 mm
• Tie bar spacing: 1180 × 1180 mm
• Min. mold thickness (without center platen): 1400 mm (expandable to 1600 mm)
• Max. mold thickness (without center platen): 2400 mm
• Max. daylight opening: 3000–3200 mm
• Max. mold opening stroke: 1600 mm
• Drive system: Servo motor with energy recovery function
3 Independent Injection Units

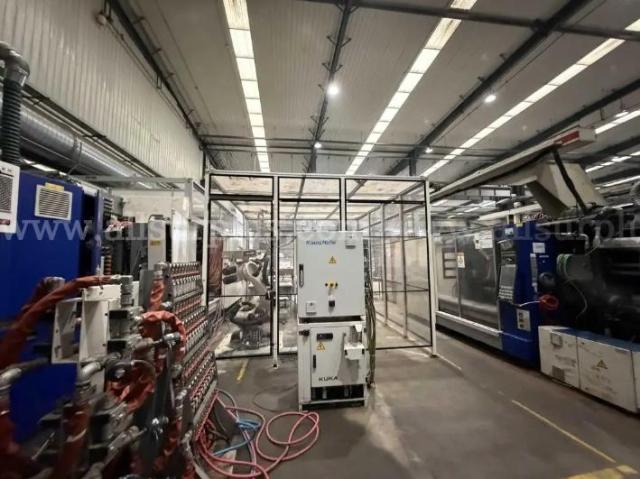

Including 1ea Robot, Model IR 900 R2700 F/K (KUKA KR 90 R2700 pro), Max. payload 90kg, Max. reach 2696mm, repeatability ±0.06mm; |
